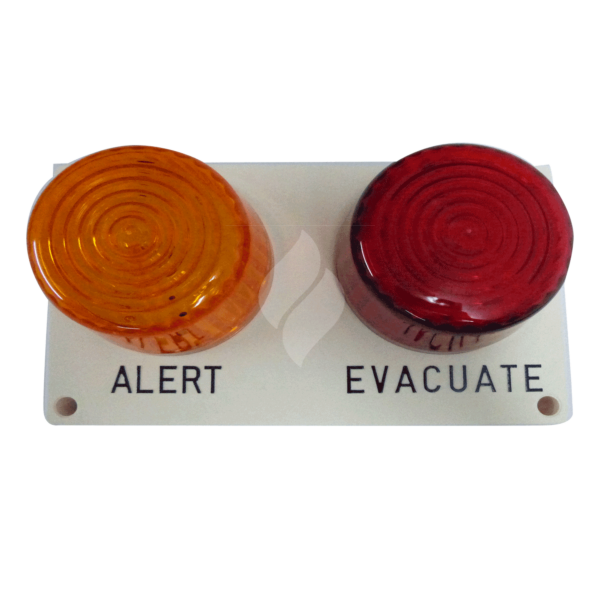

Vigilant Tyco 24VDC Dual Strobe Lights (EA0313)
$230.16
Dual Strobe Lights
SKU
EA0313
Where two distinct visible signals are required, the dual strobes operate at 24 volts and provide a 2.6 Joule output. the strobes may be powered in tandem over a two wire circuit or independently over a 4 wire circuit and are mounted onto a moulded single gang backbox for installation ease and flexibility.
The Dual Strobes operate at 24 volts, with high powered ‘U’ type Xenon lamps providing a 2.6 Joule output ensuring high visibility. When energised at 24VDC, the strobes will flash at approximately 100 flashes per mnute. At higher voltages, the flash rate will be correspondingly higher.
The Lamp assemblies are raintight, made from high impact resistant ABS.
Specifications
| Operating Voltage: | 20 to 30Vdc |
| In Rush Current: | (24VDC) 290mA |
| Alarm Current: | (24VDC) 160mA |
| Luminescence: | 2.6J |
| Operating Temperature: | -30°C to +60°C |
| Relative Humidity: | 10 to 95% (non-condensing) |
| Dimensions: | 250mm (height) |
| 150mm (width) | |
| 80mm (depth) | |
| Mounting: | 5.5mm x4 holes 226x126mm |
| Weight: | 450g |
| Construction: | IP54 |
| Part Number: | EA0313 |
Datasheet
EA0313 24VDC Dual Strobe (red/amber) with surface mounting Datapage
