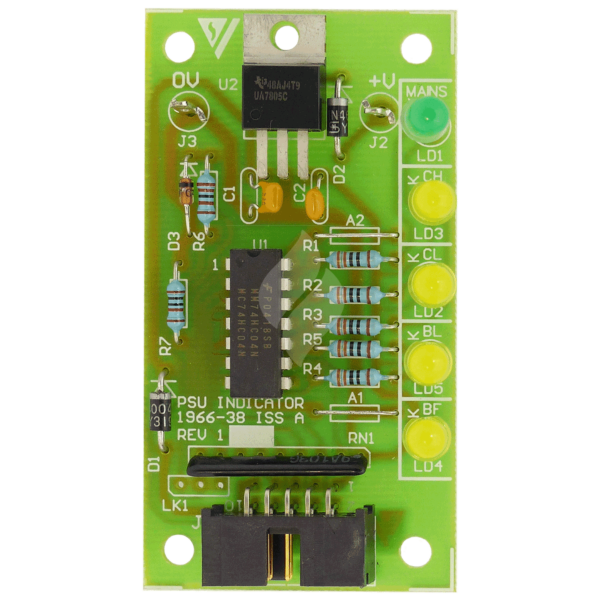

Vigilant PSU Indicator Board (PA0848)
This PCB Assembly connects via a flat ribbon cable to the PSU24XX range of power supplies. The PCB provides optional Mains On, Charger Low, Charger High, Battery Fail and Battery Low LED
indicators which may be mounted on the front facia of equipment.
SKU
PA0848
This PCB Assembly connects via a flat ribbon cable to the PSU24XX range of power supplies. The PCB provides optional Mains On, Charger Low, Charger High, Battery Fail and Battery Low LED
indicators which may be mounted on the front facia of equipment. PCB Dimensions (mm): 75H x 40W x 30D. Supplied complete with self-adhesive PCB stand-offs and LED label. It mounts on 4 adhesivebased stand-offs, included with the PCB. Five Ø5.5- 6mm holes need to be drilled at 10mm vertical spacing for the LEDs. The LEDs are bent around the side of the PCB and out through the holes in the door. A label identifying the LEDs and their functions is also included. Refer to Product Bulletin PBG0093 for further information Part Number PA0848
