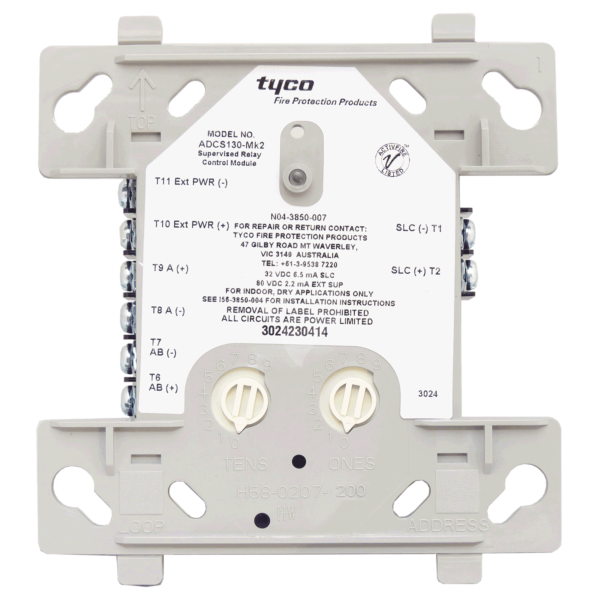

Vigilant Output Control Module (ADCSx130-Mk2 )

$480.04
The ADCS130-Mk2 Supervised Relay Control Module provides a single switched supervised output on the MPR addressable loop.
SKU
ADCS130-MK2
The ADCS130-Mk2 Supervised Relay Control Module provides a single switched supervised output on the MPR addressable loop. It supervises the output wiring for open or short circuit faults when the output is de-energised. The ADCS130- Mk2 can directly replace an ADC130 configured for supervised output operation (tabs in place). The ADCU130-Mk2 Unsupervised Relay Control Module provides two change-over relay outputs on the MPR addressable loop that operate together under control of the MX4428. The two relay outputs are electrically isolated and there is no supervision of the output wiring. The ADCU130-Mk2 can directly replace an ADC130 that has been used in unsupervised output mode (tabs broken). Either module mounts to a double gang back box with a minimum depth of 50mm.Part Number ADCSx130-Mk2



Specification

Click here for ADCS130 Control Module Datapage.pdf
