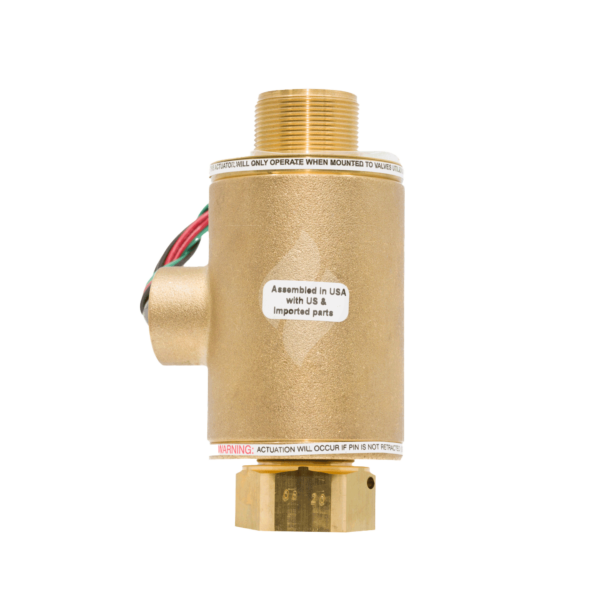

Kidde Electrical Control Head Novec-1230 & FM-200 HFC-227ea (82-486500-010)
Kidde Novec-1230 & FM-200 HFC-227ea Electrical Control Head (82-486500-010)
SKU
82-486500-010
Kidde Electrical Control Head Novec-1230 & FM-200 HFC-227ea (82-486500-010) is available to buy in increments of 1
FSP Can Supply Kidde Novec-1230 & FM-200 HFC-227ea Electrical Control Head (82-486500-010) The Kidde ECS Stackable Explosion Proof Electric Control Head is designed to actuate agent cylinder valves only. The control head can be operated electrically from the Detection and Control system, or by local manual operation via an affixed manual control head.
Kidde Novec-1230 & FM-200 Electrical Control Head Technical Specifications and Information
- Operating Voltage: 18 Vdc @ 0.20 A to 30 Vdc @ 0.50 A
- Current Draw: At 24 Vdc 0.2 A continuous
- Wire Size: 18 AWG
- Lead length: 18 in. (457 mm)
- Operating Temperature: -400F to 1400F (-400C to 540C)
- Dimensions: 2.9 in. diameter x 5.3 in. long
(74 mm diameter x 134 mm long) - Weight: 5.1 lb. (2.3 kg)
- Part Number: 82-486500-010
- Applications: FM-200, HFC-227ea, 487 Series Cylinder Valves
- Releasing Device Approval/Listing: UL, ULC, FM
- HazLoc Approval/Listing: UL, FM, DEMKO
- HazLoc Ratings: Class I Division I Group C & D
Class II Division I Group E, F & G - Construction Material: Brass body
Kidde Control Head Electrical Explosion proof K-90-9050
