kidde 70lb cylinder full tank with dimensions 06-100070-000

Kidde Blank 70Lb (31Kg, 28.3 Ltr) Fire Suppression Cylinder, with either Novec-1230 or FM-200 agent (06-100070-000)

Label Kidde Fire Systems(06-231866-498)

Label Kidde Fire Systems(06-231866-498)

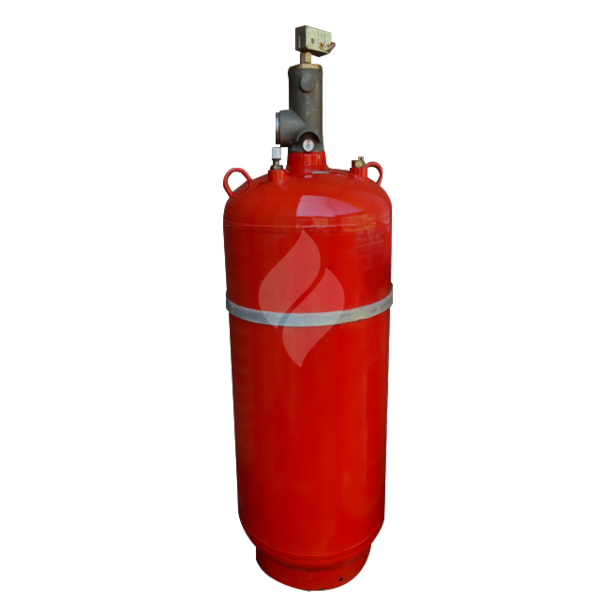

Kidde Blank 900Lb (408Kg, 368 Ltr) Fire Suppression Cylinder, with either Novec-1230 or FM-200 agent (06-100900-000)

Kidde Blank 900Lb (408Kg, 368Ltr) Cylinders, which can be filled with between 106.3Kg and 412.7Kg of Gas Suppression Agent. (06-100900-000 )
SKU
06-100900-000

FSP Can Supply new, Refill, Hydrostatic test and service Kidde Blank 900Lb (408Kg, 368Ltr) Cylinders, which can be filled with between 106.3Kg and 412.7Kg of Gas Suppression Agent. (06-100900-000 ) The cylinders are equipped with a 3-inch pressure differential valve and pressure gauge. The safety burst disc is also located on the cylinder head.

Contact us if you need these cylinders with the optional liquid level indicator or optional low-pressure switch assembly.

FM-200 is required to be kept under pressure otherwise it vaporises. Dry Nitrogen is used to provide the constant pressure required to keep the agent in liquid form in the tank.

Kidde Blank 900Lb (408Kg) Cylinder Specifications

  • Height = 1560mm
  • Valve Size = 3inch
  • Min Fill = 106.3Kg
  • Max Fill = 412.7Kg
  • Gross Weight = 641.8Kg
kidde cylinder size
