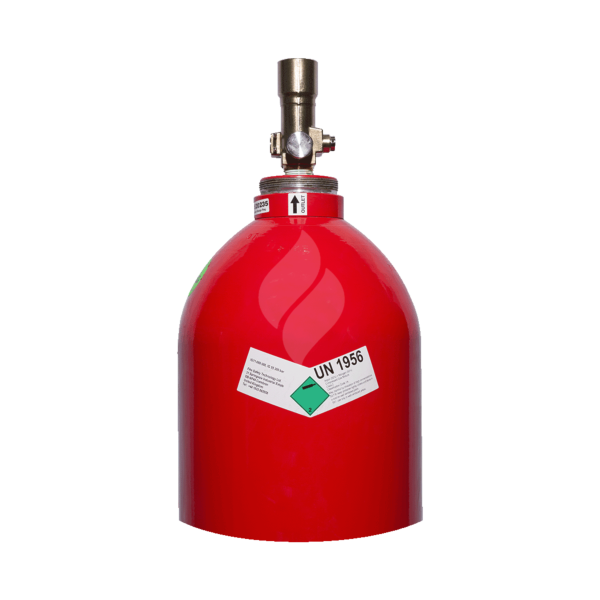

Fike IG541 80L 200Bar 300Bar Cylinder Proinert Valve Shoulder Detail CYL-80L-IG541-FIKE IG71-080-200-541

Fike 80L IG-541 200bar or 300bar Cylinder with Valve with Exchange, refill and testing Proinert (CYL-80L-IG541-FIKE)

Fike 80L IG-55 200bar or 300bar Cylinder with Valve with Exchange, refill and testing Proinert (CYL-80L-IG55-FIKE)

Fike 80L IG-55 200bar or 300bar Cylinder Proinert with Valve Exchange, refill and testing (CYL-80L-IG55-FIKE IG71-200-55, IG71-300-55)
SKU
CYL-80L-IG55-FIKE
Fike 80L IG-55 200bar or 300bar Cylinder with Valve with Exchange, refill and testing Proinert (CYL-80L-IG55-FIKE) is available to buy in increments of 1

FSP Can Supply Fike 80L IG-55 200bar or 300bar Cylinder Proinert with Valve Exchange, refill and testing (CYL-80L-IG55-FIKE IG71-200-55, IG71-300-55) steel, seamless gaseous fire suppression containers, filled with Inert Gas.

Each filled cylinder comes with an actuator and a ProInert Valve Assembly, which includes a combined pressure gauge and switch device to allow visual pressure indication and cylinder pressure monitoring by a fire control panel. Each cylinder can be mounted either upright or horizontally.

Fike 80L IG-55 200bar or 300bar Cylinder Exchange, refill and testing with Valve Technical Specifications and Information

Cyilnder Size:80 Liter (water capacity)
Cylinder Height:75 in (1910 mm)
Cylinder Width:10.5 in (267 mm)
Mounting Position:Upright
Cylinder Part Number:IG71-103-200-55
IG71-103-300-55
Cylinder – Pressurization Level:2900 psi at 60°F (200 bar at 15°C)
4351 psi at 60°F (300 bar at 15°C)
Cylinder Storage Temperature Limitation:-4°F to +120°F (-20°C to +48°C) for cylinder and all related items
Agent Capacity:572.3 ft3 (16.2 m3) @ 200 bar
801.6 ft3 (22.7 m3) @ 300 bar
Cylinder Rating:DOT 3AA3000 (US Department of Transportation)
TC-3AAM (Transport Canada)
EN ISO 9809-2
Cylinder Actuation Methods:Electric – UVO (Input from Control Panel)
Manual – Push button on UVO
Pneumatic - Relay Actuator or Pneumatic Actuator
Cylinder Color:Signal Red
Tare Weight:244 lbs. (110.7 kg) approximate
Gross Weight:200 bar: 294.5 lbs. (133.5 kg) approximate
300 bar: 315 lbs (142.8 kg) approximate
Fike Cylinder and Proinert Valve Diagram with Labels

Fike 80L IG-55 200bar or 300bar Cylinder with Valve Exchange, refill and testing Data Sheet

Spec Sheet Icon Fike Proinert 2 agent storage cylinder ig55 datasheet C15501 3

Fike Proinert IG55 MSDS 2015

Applications

ARGONITE can be used to suppress fire in a diverse and challenging range of applications.

  • Data Processing
  • Data Centres, Computer Suites, Telecom Centres, Tape Storage Libraries, UPS Rooms, Financial Centres and Banks
  • Cleanrooms
  • Electronic equipment manufacturing, Medical and Laboratory Equipment, Biotechnology, Pharmaceutical and Medical Facilities, Operation Rooms, Universities and Colleges
  • Communications
  • Internet Service Providers, Switch Rooms, Control Centres, Cell Sites, Railway Signalling Centres, Air Traffic Management Centres, Military Installations
  • Heritage preservation
  • Art Galleries, Museums, Libraries, Classic Car Garages, Cultural Centres, Archive Stores
  • Power generation
  • Generators, Gas Turbines, Substations, Control Rooms
  • Oil & Gas
  • Offshore Oil and Gas Installations, Pipeline Pumping Stations, Petrochemical Plants
