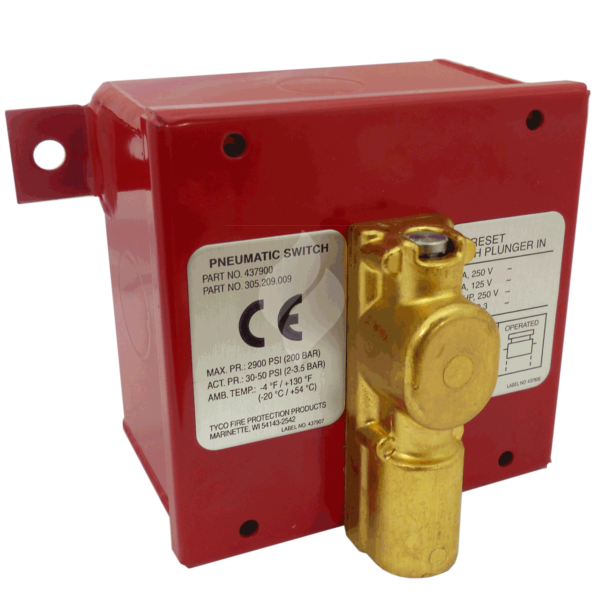

Ansul Pneumatic Pressure Switch Sapphire & FM-200 Novec-1230 & HFC-227ea New and Replacement (437900)

Ansul Sapphire & FM-200 Novec-1230 & HFC-227ea Pneumatic Pressure Switch New and Replacement (437900 305.209.009)

SKU
437900

FSP Can Supply Ansul Sapphire & FM-200 Novec-1230 & HFC-227ea Pneumatic Pressure Switch New and Replacement (437900 305.209.009) The Ansul Pneumatic discharge pressure switch activates from agent pressure during discharge. The three pole double throw (3PDT) latching pressure switch can be use in both Normally Open (NO) and Normally Closed (NC) to turn on lights or alarms or provider pressure switch feed-back to monitor for system discharge when wired to a control panel. If a Manual Actuator is installed on the valve assembly, a Pneumatic Pressure switch should be fitted to the system to ensure detection of manual actuation.

Ansul Sapphire & FM-200 Pneumatic Pressure Switch Specifications

Technical information

Switch case and cover:C.R. steel (painted red)
Body:C37700 forged brass
Switch point:2.8 bar rising (40 psi)
Tolerance:± 0.7 bar (± 10 psi)
IP rating:IP65
Electrical connection:1/2 in. and 3/4 in. conduit
knockouts with #6-32 UNC
terminal screws
Pressure connection:3/8 in. NPT Female
Adaptor:3/8 in. NPT Male x 1/4 in. NPT
Female
Range:1 bar to 3 bar
Reset method:Manual through plunger
Minimum actuation
pressure:
3.4 bar (50 psi)
Maximum operating
pressure:
200 bar (2900 psi)
Electrical ratings:10 A 250 VAC
15 A 125 VAC
3/4HP, 250 VAC
1-, 2-, or 3-phase
Switch configuration:Three pole, double throw
(3PDT)
Installation environment:Indoor / non-corrosive
Working temperature
range:
-20 °C to 50 °C (-4 °F to 122 °F)
(EU)
-18 °C to 54 °C (0 °F to 130 °F)
(UL and FM)
Conformity:EN 12094-10
Marking requirements:Manufacturer’s mark, part
number, maximum working
pressure, serial number
Method of marking:Permanent, non-flammable
Overall size:114 mm (L) x 114 mm (H) x
67 mm (W)
(4.49 in. (L) x 4.49 in. (H) x
2.64 in. (W))
Weight:1.0 kg (2.20 lb)
Approvals and listings:LPCB (Part No. 305.209.009)
UL and FM (Part No. 437900)
