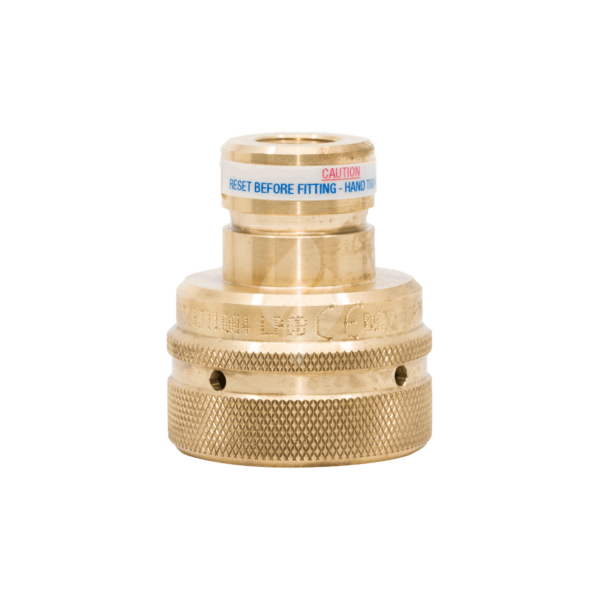

Ansul Pneumatic Actuator Sapphire & FM-200 Novec-1230 & HFC-227ea for Activation of the subordinate gas suppression system containers (570550)
Ansul Sapphire & FM-200 Novec-1230 & HFC-227ea Subordinate Pneumatic Actuator for Activation of the subordinate gas suppression system containers (570550 304.209.004)
SKU
570550
Ansul Pneumatic Actuator Sapphire & FM-200 Novec-1230 & HFC-227ea for Activation of the subordinate gas suppression system containers (570550) is available to buy in increments of 1
FSP Can Supply Ansul Sapphire & FM-200 Novec-1230 & HFC-227ea Pneumatic Actuator for Activation of the subordinate gas suppression system containers (570550 304.209.004) The pneumatic actuator operates the slave system containers. The actuator may be fitted to the top of the valve assembly or electrical actuator. Pressure from a master container, or pilot container actuates the valve.
Contact us if you need Ansul FM-200 or Sapphire Actuators.
The actuator can be mounted either on the top port of the tank valve or on top of the electric solenoid valve.
Tyco 304.205.004 is obselete and replaced by this product (304.209.004)
Ansul Sapphire & FM-200 Pneumatic Actuator Technical Specifications and Information
| Suitable Valves: | CV90 & CV98 |
| Body: | Brass CZ121 (CW614N) |
| Actuator pin: | Brass CZ121 (CW614N) |
| Pipe connection: | 1/4 in. NPT Female |
| Maximum working pressure: | 120 bar (1740 psi) |
| Test pressure: | 180 bar (2610 psi) |
| Vent area: | 31.77 mm² (0.049 in.2) |
| Stroke: | 3.7 mm (0.15 in.) |
| Minimum trigger pressure: | 5.2 bar (75.4 psi) |
| Nominal trigger pressure: | Dependent on actuation source (Master or AUTOMAN II-C) |
| Maximum trigger pressure: | 120 bar (1740 psi) |
| Minimum duration of trigger pressure: | 1 s |
| Weight: | 0.23 kg (0.50 lb) |
| Working temperature range: | -20 °C to 50 °C (-4 °F to 122 °F) (CE) -18 °C to 54 °C (0 °F to 130 °F) (UL and FM) |
| Testing of actuator: | Possible |
| Approvals and listings: | UL, FM, and CE |
| Overall size: | 48.0 mm (L) x 41.5 mm (Dia) (1.89 in. (L) x 1.63 in. (Dia)) |
Ansul Sapphire & FM-200 Pneumatic Actuator ,Data Sheet
Ansul-master-manual-actuator-570549-and-Pneumatic-Actuator-570550
