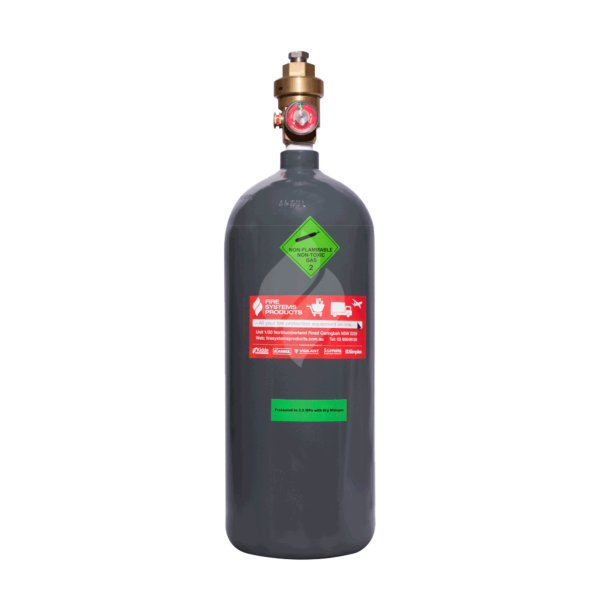

Ansul 8.2L Nitrogen Pilot Cylinders Modular Valve Exchange & Replace Inergen IG-541 Marine & Military Spec (CYL-NITROGEN-PILOT-8-2L)
Ansul 8.2L Nitrogen Pilot Cylinders Inergen IG-541 Modular Valve Exchange & Replace Marine & Military Spec (CYL-NITROGEN-PILOT-8-2L)
SKU
CYL-NITROGEN-PILOT-8-2L
Ansul 8.2L Nitrogen Pilot Cylinders Modular Valve Exchange & Replace Inergen IG-541 Marine & Military Spec (CYL-NITROGEN-PILOT-8-2L) is available to buy in increments of 1
FSP Can Supply Ansul 8.2L Nitrogen Pilot Cylinders Inergen IG-541 Modular Valve Exchange & Replace Marine & Military Spec (CYL-NITROGEN-PILOT-8-2L). These seamless cylinders are designed to be explosion resistant and shatter-proof to withstand penetrative force without explosion.
Ansul 8.2L Nitrogen Pilot Cylinders Exchange & Replace Modular Valve Technical Specifications and Information
| Filled: | 350 PSI of Nitrogen |
| Weight Filled: | 13.9kg |
| Weight Empty: | 11.3kg |
| Height Cylinder only: | 480mm (Approx) / 19 in. |
| Height Cylinder + Valve: | 580mm (approx) / 23 in. |
| Diameter Cylinder: | 175mm (approx) / 6.9 in. |
| Max Service Pressure: | 2015 psi |
| Max Test Pressure: | 3360 psi |
| Cylinder Type: | Shatter-proof design |
| Cylinder Spec: | DOT-3AA2015-142 |
| Cylinder Thread: | 1"-11-1/2 NGT |
| Valve Type: | Modular |
| Valve Markings: | MODVAL15 or MODVAL2515 |
Applications
- Maritime Inergen Installations
- Military Inergen Suppression
