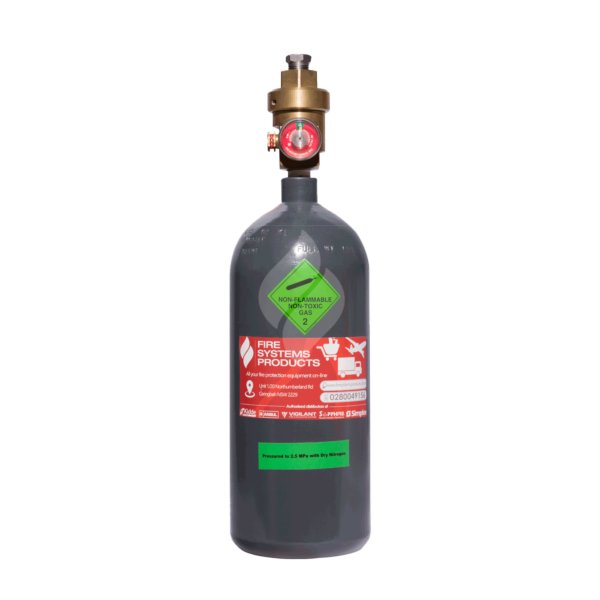

Ansul 3.5L Nitrogen Pilot Cylinders Modular Valve Exchange & Replace Inergen IG-541 Marine & Military Spec (CYL-NITROGEN-PILOT-3-5L)
Ansul 3.5L Nitrogen Pilot Cylinders Inergen IG-541 Modular Valve Exchange & Replace Marine & Military Spec (CYL-NITROGEN-PILOT-3-5L)
SKU
CYL-NITROGEN-PILOT-3-5L
Ansul 3.5L Nitrogen Pilot Cylinders Modular Valve Exchange & Replace Inergen IG-541 Marine & Military Spec (CYL-NITROGEN-PILOT-3-5L) is available to buy in increments of 1
FSP Can Supply Ansul 3.5L Nitrogen Pilot Cylinders Inergen IG-541 Modular Valve Exchange & Replace Marine & Military Spec (CYL-NITROGEN-PILOT-3-5L). These seamless cylinders are designed to be explosion resistant and shatter-proof to withstand penetrative force without explosion.
Ansul 3.5L Nitrogen Pilot Cylinders Exchange & Replace Modular Valve Technical Specifications and Information
| Filled: | 350 PSI of Nitrogen |
| Weight Filled: | 5.4kg |
| Weight Empty: | 4.3kg (estimate) |
| Height Cylinder only: | 360mm (Approx) / 14 in. |
| Height Cylinder + Valve: | 460mm (approx) / 18 in. |
| Diameter Cylinder: | 135mm (approx) / 5.3 in. |
| Max Service Pressure: | 2015 psi |
| Max Test Pressure: | 3360 psi |
| Cylinder Type: | Shatter-proof design |
| Cylinder Spec: | DOT-3AA2015-142 |
| Cylinder Thread: | 1"-11-1/2 NGT |
| Valve Type: | Modular |
| Valve Markings: | MODVAL15 or MODVAL2515 |
Applications
- Maritime Inergen Installations
- Military Inergen Suppression
