Simplex TrueStart2 test tool, with 24V power pack battery charger, test leads, instructions and carry bag(TSIT-AUK)

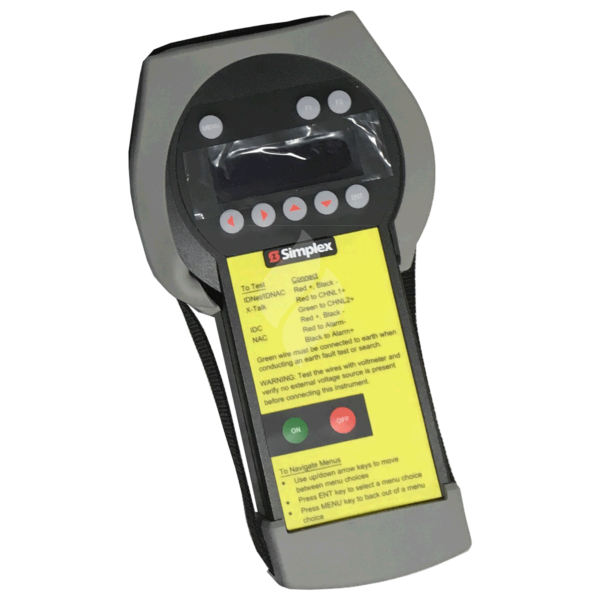

The Simplex TrueSTART II Test Tool is a portable, battery-operated, handheld Testing, Servicing and Installation instrument for the devices of the Simplex 4100 fire alarm control panel.

The TrueStart II has been designed to enable contractors or technicians to quickly verify that all IDNet wiring and peripheral devices are installed correctly and operating properly, even before they are connected to the 4100 fire alarm control panel.

The TrueSTART II instrument uses advanced software technology to scan hundreds of addressable fire alarm system devices and pinpoint potential problems, such as ground faults, shorted wiring, or incorrect or duplicate addressing.

Testing & Safety

The TrueStart2 Test Tool supports the line testing of IDNet and IDNAC addressable devices, Simplex NACs and Simplex IDCs. Connect and test only these types of circuits. Before connecting the tester to any circuit for testing, verify that the circuit is not connected to any voltage source. Measure across each circuit pair with a voltmeter. Measure each conductor to earth. Remove any external voltage source prior to connecting tester.

Power-Up

Do not connect the test leads to any field wiring until after the TrueStart2 Test Tool is powered.

Power up by pressing and holding the Green ON button until the Initialization Screen is displayed. The tester requires approximately 5 seconds to initialize, after which it will display the first menu choice.

Selecting a Test

Use the Arrow Up or Down keys to scroll through the menu choices. When the desired selection is displayed, press ENT to select that option.

To return to the main menu, follow the instructions on the display. Press MENU to back out of a menu choice.

Part Number TSIT-AUK
