OBSELETE Vigilant T54B Type E Probe Heat Detector
$291.44
T54B Probe Type E Heat Detector
SKU
T4E66X

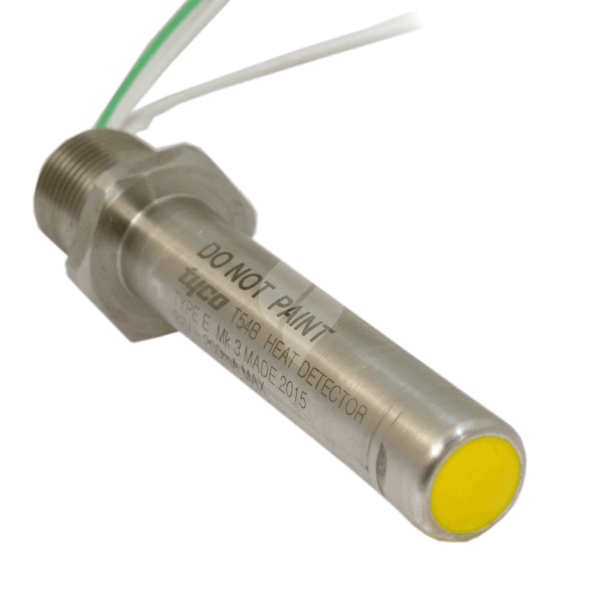

Constructed from stainless steel, the T54B is an extremely rugged heat detector that can be used to detect fires in the harshness of environments. The T54B can be used in environments with ambient temperatures up to 280 degrees, and being hermetically sealed, is impervious to most contaminants. The T54B is a simple device and therefore suitable for use in intrinsically safe areas when used with a suitable I.S barrier. For reliable operation, it is recommended that T54B detectors have set points 20 degree or 20% (whichever is higher) above the maximum temperature they will be exposed to in normal operation. Preferred factory preset temperatures range from 60 degrees to 250 degrees, with normally open contacts. Other temperatures and normally closed contacts are available by request.
Thread size M20x1.5mm
T54B Type E Probe Heat Detector Datapage.pdf
Specification
T54B Type E Probe Heat Detector Datapage.pdf
