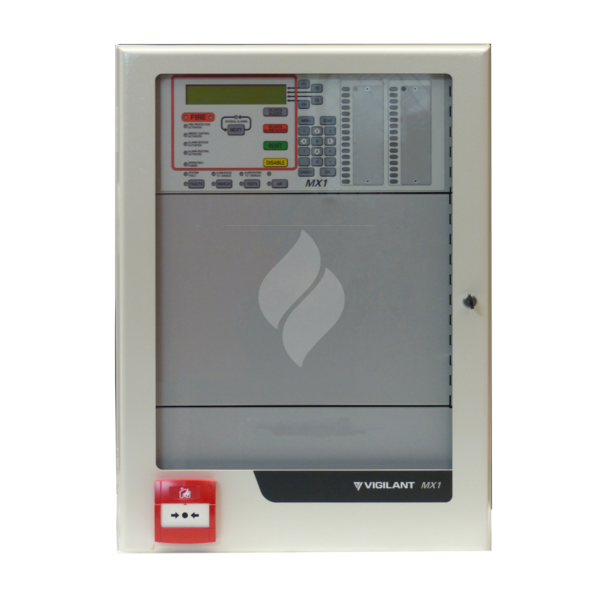

Vigilant MX1 Fire Alarm System 15U Cabinet (FP0948)
$4,370.83
Single MX DIGITAL Loop supporting up to 250 MX devices
• Optional second MX DIGITAL Loop for an additional 250 MX devices
• MX VIRTUAL multi-sensor analogue addressable detector technology
• MX FASTLOGIC detection algorithm with SMARTSENSE option
• Clear alarm messages on 4-line LCD
• Compact zone LED display
• High level EWIS interface
• “Profiles†simplify programming of complex detection and logic functions
• Day/ night modes for alarm sensitivity adjustment and output logic functions
• Powerful, field-programmable logic equations, functions, timers
• Pseudo points controlled by logic equations for enhanced control options
• Built-in clock/ calendar with automatic daylight saving adjustment
• Comprehensive test facilities including automatic self-test and fast commissioning test mode
• High capacity integral 5A power supply
• 19†Rack Cabinet
• Earth fault supervision
SKU
FP0948
When protecting small to medium size facilities, the VIGILANT MX1 fire detection and alarm system is the panel of choice. It is simple to use, cost-effective, and offers a range of advanced features commonly found in only large and complex systems.
The VIGILANT MX1 supports a wide range of fire protection devices, in particular those from the patented MX TECHNOLOGY range.
The MX1 supports MX VIRTUAL analogue addressable detectors such as the 814PH (Smoke & Heat) and 814CH (CO & Heat).
Each of these detectors incorporate dual sensors which may operate independently, or be used in heat enhancement mode for faster response to a flaming fire, allowing optimum detection with the best nuisance alarm suppression.
The available detection modes include:
• CO plus Heat detection,
• Heat-enhanced CO detection
• Smoke plus Heat detection
• Heat-enhanced Smoke detection
• CO detection only
• Smoke detection only
• Heat detection only
The MX1 includes one MX loop and through the addition of MX loop cards, can be expanded to 8 loops in total. Up to 250 MX devices may be connected per loop, with each device supporting several subpoints that may be mapped to different zones and/or control functions.
For specific applications, single-sensor MX analogue addressable ionisation and photoelectric smoke detectors, high sensitivity smoke detectors (VESDA), heat-only detectors, flame detectors and intrinsically safe devices are also available.
The MX DIGITAL communications protocol used on the addressable loops is designed to provide high reliability and fault tolerance, with operation possible over many cable types. This often permits system upgrades using existing cable.
Specification
Click here for MX1 Fire Alarm System Datapage
