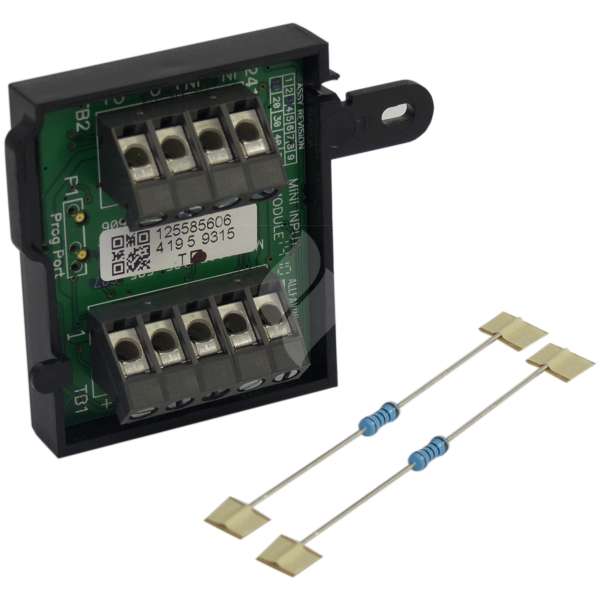

Vigilant MIM800 Mini Input Module (555.800.001)

$165.74
The MIM800 Mini Input Module monitors a voltage free contact and transmits its state to the c.i.e. It can be programmed to monitor either Normally Open (default) or Normally Closed contacts. The MIMs can be programmed to monitor:
SKU
MIM800
The MIM800 Mini Input Module monitors a voltage free contact and transmits its state to the c.i.e. It can be programmed to monitor either Normally Open (default) or Normally Closed contacts. The MIMs can be programmed to monitor: · One circuit of multiple N/O contacts, with short circuit alarm. · One circuit of multiple N/C contacts, with open circuit alarm. · One circuit with a single N/O contact, closing for alarm, with fault detection for short circuit. The MIM801 is also available; it is optimised for normally closed applications and can generate an interrupt (only used when a fast response is required) on an open circuit. The MIM800 can operate an E500 Mk2 Series Remote Indicator. Part Number 555.800.001



Specification

MIM800 Mini Input Module Datapage
