KIDDE Microswitch Kit for XV™ Control System (87-120039-501)

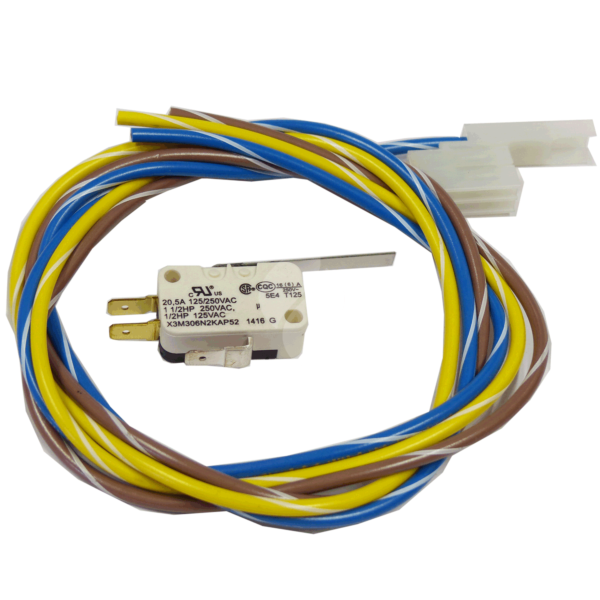

The Quick Connect Microswitch used with the XV Control System is a single pole, double-throw switch (Figure 1). Included in the microswitch kit is the microswitch, pigtail assembly, mounting screws, and wiring diagram label. Microswitch Kit P/N 87-120039-001 includes a pigtail assembly with solid color leads. Microswitch Kit P/N 87- 120039-501 includes a pigtail assembly with striped leads. All wire leads are 24 inches (610 mm) in length. Part Number 87-120039-501
