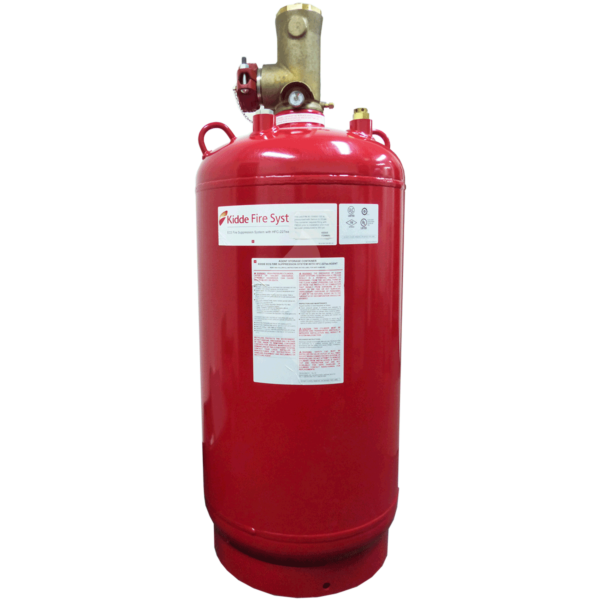

Kidde Blank 600Lb (272Kg, 246 Ltr) 3 inch Rolled Edge Valve Fire Suppression Cylinder, with either Novec-1230 or FM-200 agent (06-100600-000)
Kidde Blank 600Lb (272Kg, 246Ltr) 3 inch Rolled Edge Valve Cylinders, which can be filled with between 136.1Kg and 272.2Kg of Gas Suppression Agent. (06-100600-000 )
SKU
06-100600-000
FSP Can Supply new, Refill, Hydrostatic test and service Kidde Blank 600Lb (272Kg, 246Ltr) 3 inch Rolled Edge Valve Cylinders, which can be filled with between 136.1Kg and 272.2Kg of Gas Suppression Agent. (06-100600-000 ) The cylinders are equipped with a 3-inch pressure differential valve and pressure gauge. The safety burst disc is also located on the cylinder head.
Contact us if you need these cylinders with the optional liquid level indicator or optional low-pressure switch assembly.
Novec-1230 is required to be kept under pressure otherwise it vaporises. Dry Nitrogen is used to provide the constant pressure required to keep the agent in liquid form in the tank.
Kidde Blank 600Lb (272Kg) Cylinder Specifications
- Height = 1280mm
- Valve Size = 3inch
- Min Fill = 136.1Kg
- Max Fill = 272.2Kg
- Gross Weight = 436.4Kg
Kidde Blank 600Lb (272Kg) Cylinder Data Sheet
kidde novec-1230 k-45-2060 600 lb Cylinder Valve Assembly Data sheet 10-7-14
