Fire Rated Cable FR 1.50mm 4 Core 250M Roll FR-1.50-4C-250

Fire Rated Cable FR 1.50mm 4 Core 250M Roll FR-1.50-4C-250

Fire Rated Cable FR 0.75 mm 2 Core Screened 250M Roll FR-0.75-2CS-250

Fire Rated Cable FR 0.75 mm 2 Core Screened 250M Roll FR-0.75-2CS-250

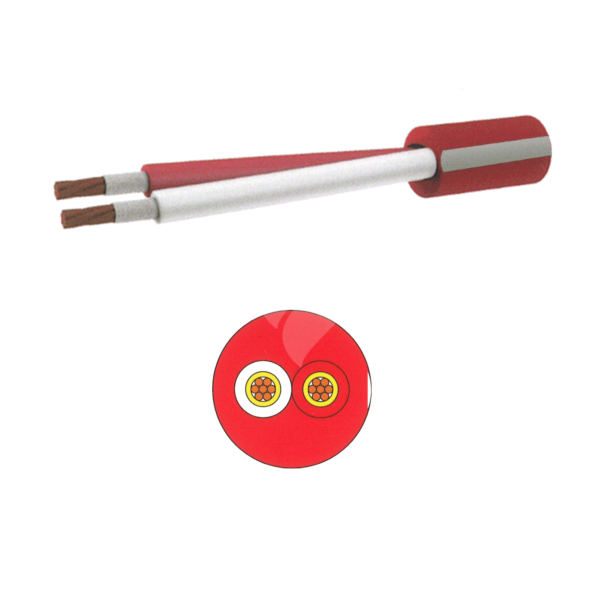

Fire Rated Cable FR 1.50mm 2 Core White Stript 500M Roll FR-1.50-2CW-500

Fire Rated cable are twisted, making them ideally suited for use with addressable fire alarm systems.
SKU
FR-1.50-2CW-500

Fire Rated Cables have been specifically designed for use with Australian Fire Alarm and EWIS systems. Fire rated cables have been independently tested and approved by EXOVA / Warrington Fire to the requirements of AS/NZS 3013 for both fire and mechanical cable properties. All FireSense cables are certified 2 hour fire rated. Fire Rated Cables have also been tested and approved to electrical standards AS5000.2 and communication/wiring standard AS/ACIF S008 by respective industry testing authorities. Fire rated cables have a reduced outside diameter which allows 2 cables to fit within a single conduit providing ease of installation. The cable’s 7 stranded copper conductors and firm insulation material also allows for neat placement on cable trays and allows ease of stripping and termination.

Part Number FR-1.50-2CW-500

Information

No. of Cores: 2
Cross Section: 1.50 mm2
Conductor Strands/Dia: 7/0.52
Overall Diameter: 10.3 mm
AS/NZS 3013 Classification: WS51W
Std Drum Length: 500m



Specification

Fire Rated Cable FR 1.50mm 2 Core White Stript 500M Roll data page
