Vigilant F3200 8 zones fitted (max.) 3A PSU, 8U Cabinet (FP0784)
F3200 8 zones fitted (max.) 3A PSU, 8U Cabinet (batteries not included)
SKU
FP0784

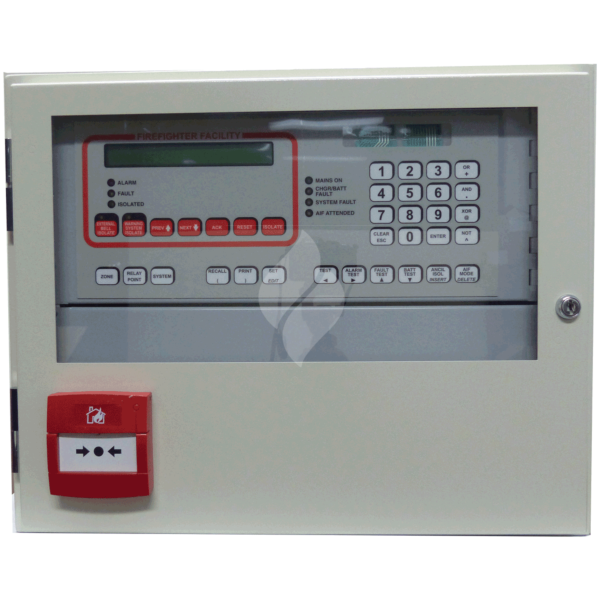

The 8-Zone F3200 is an advanced, microprocessor based conventional fire indicator panel, which provides economical and reliable monitoring and control for 8 fire detection zones. Its flexible input monitoring, and its extensive field programming facilities make it suitable for a wide range of fire protection applications including fire detection, fire suppression, and ventilation control.
Basic System Comprises:
- Compact 8-zone configuration
- Wide conventional detector compatibility including IS types
- Flow switch monitoring and remote testing
- AS 1668 air-handling, smoke detection and control
- Comprehensive test facilities including automatic self tests
- LCD control panel with zone description text
- Field programmable using front panel keypad
- Powerful boolean logic functions for controlling outputs
- Supervised outputs for bell, warning system, doorholders
- Remote repeater panels, mimics and/or colour graphics displays
- Logging printer output
- Network communications option
- High level interface for EWIS, BMS, etc.
- Integral 3A battery charger
- Compact and attractive cabinet with 19" rack options
- Cabinet dimensions: 440h x 550w x 230d
- Complies with AS4428.1 fire alarm standards
- SSL listing number afp-789
Specification
Click here for FP0784 8-Zone F3200 Fire Indicator Panel Datapage
