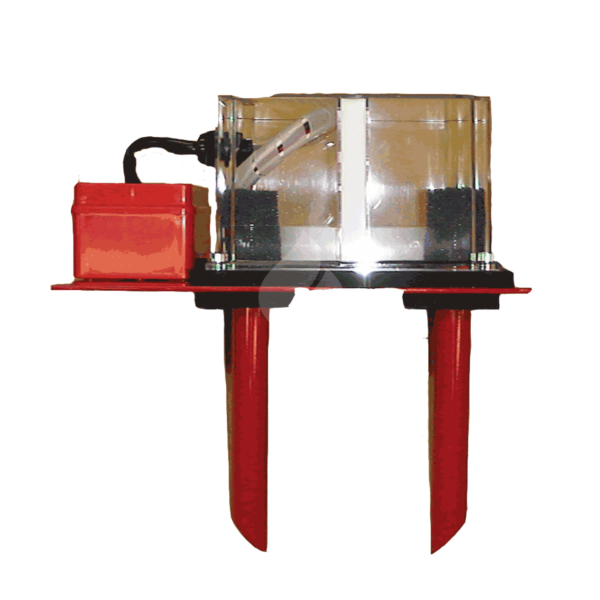

D51 Duct Housing with 5B Base – To Suit 614 Series Conventional Detectors

Vigilant D51 duct housing with 5B base designed for use with 614 series conventional detectors in HVAC duct applications.

SKU

D515B

Details

The D515B Duct Sampling Unit consists of a D515B duct housing fitted with a 5B base suitable for fitting a collective 614P photoelectric smoke detector. The DSU is designed to sample air in air conditioning ducts and pass the air through the smoke detector. The D515B is fixed on the outside of the duct to be sampled, allowing easy access for detector servicing and replacement of the dust filter Part Number D515B

Specification

Click here for D515B Duct Sampling unit Datapage

About Vigilant Fire Alarm

There is a Vigilant Fire Panel for virtually every application.

Simple to use, cost-effective, and a range of advanced features usually found on more complex systems.

Vigilant Fire Panels can support analogue addressable detectors, such as the 814PH (Smoke & Heat) and 814CH (CO & Heat) fire detectors.

Each of these detectors incorporates multiple sensors which may operate independently, or used in heat enhancement mode for faster response to a flaming fire, allowing optimum detection with the best nuisance alarm suppression.

Key Features:

Detector pre-alarm sensing for early warning of a potential alarm
Compensation for soiling and changes in ambient conditions
Logging “detector dirty alert” when compensation limits are about to be exceeded, to highlight the need for maintenance to be carried out
Heat sensor able to be programmed to act independently as a heat detector

Vigilant History

Originally founded in 1914 as the Vigilant AutomaticFire Alarm Company, Ltd., Vigilant patented the Vigilant Thermostat Fire Detector and continued to develop market-leading innovations that earned it an impressive reputation for saving lives.

A respected regional brand of Johnson Controls, they are a leader in the Australian and New Zealand fire detection markets with AS and NZS product approvals.
