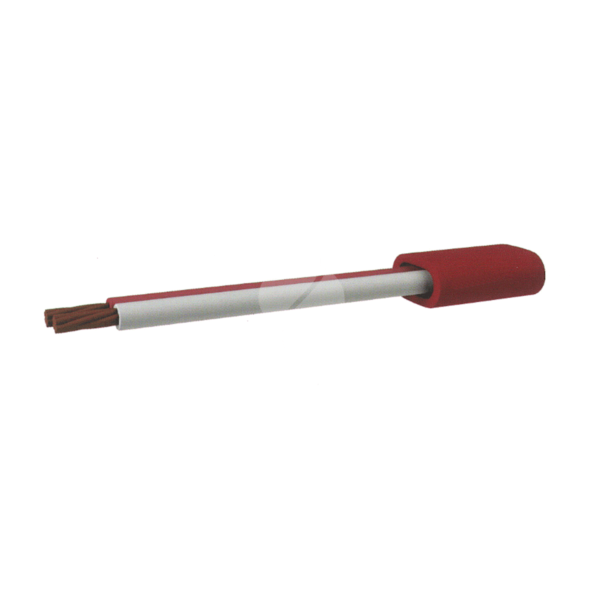

Fire Cable Red TPS 0.75MM 2 Core - Flat 200M Roll TPSLD-075-2C

TPS cables are ideally suited for cabling from the Fire Alarm, OWS and EWIS panels to detectors, speakers, horns, strobes, field modules, etc. FireSense TPS cables are double insulated and have an outer sheath which is easy to strip and terminate. In addition to the basic Flat cable design, a white stripe cable is available to allow installer to distinguish between speaker and detector circuit. Also available is a twisted cable for the cabling between addressable fire panels, detectors and devices.

Part Number TPSLD-0.75-2C-200

Product Description

No.of Cores: 2
Cross Section: 0.75 mm2
Conductor Strands/Dia: 7 / 0.37
Insulation Material: PVC-V90
Core Lay Up: Flat
Size: 200m Roll

Specification

Click here for TPSLD Flat 2 Core Red 0.75 Datapage
