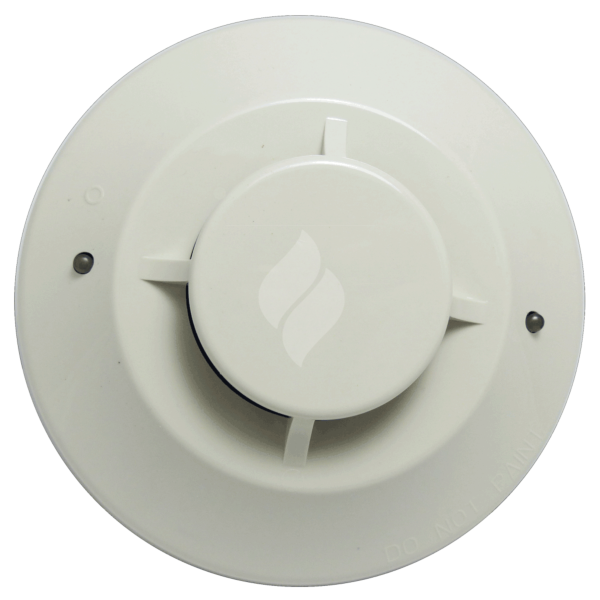

Vigilant C131A Mark 2 Analogue Addressable Ionisation Smoke Detector (C131A-Mk2)

C131A Mk2 Ion Smoke
SKU
C131A-Mk2

FSP have limited stock of the run-out item

The C131A dual-chamber ionisation smoke detector contains a state-of-the-art sensing chamber and analogue communication electronics. Used in conjunction with the Vigilant panel, the C131A has a high degree of false alarm immunity.

FSP Can Supply Vigilant Smoke Detector Analogue Photoelectric (C131A-MK2) is designed for use with Vigilant MX4428 analogue panel to provide open area protection.

The C131A Mark 2 Detector has a high degree of false alarm immunity thanks to its state-of-the-art sensing chamber and advanced SmartSense algorithms.

Up to 99 sensors and 99 modules may be wired to each MPR addressable loop. Use with Vigilant Z131A standard base or Vigilant Z132A Sounder base.

FSP have limited stock of the run-out item

Installation

The Detector mounts on the B501AUS or B200SR base, has two LEDs on opposing sides with and optional remote LED annunciator capability (E500Mk2) available.

Installation should comply with the MX4428 Installation Manual (LT0070) in order to meet the AS1670.1/NZS4512 standard and offer maximum performance.

Vigilant Smoke Detector Photoelectric Technical Specifications and Information

Operating Voltage Range:15 to 32 VDC
Maximum Average Standby Current:360μA @ 24 VDC (one communication every 5 seconds with LED blink enabled)
Maximum Alarm Current (LED on):6.5 mA @ 24 VDC
Operating Humidity Range:10% to 93% Relative Humidity, Non-condensing
Operating Temperature Range:-10C to 49C (14F to 120F)
Height:51 mm installed in Z131A Base
Diameter:102 mm installed in Z131 A Base
Shipping Weight:147 g
Nominal Alarm Sensitivity:6% obs/m
Warranty:3 Years
Vigilant Smoke Detector Analogue Photoelectric C131A MK2 Wiring

Vigilant Smoke Detector Photoelectric Data Sheet

Spec Sheet Icon Vigilant Photoelectric Smoke Detector C131A MK2 Datasheet



Installation warning The C131A-Mk2 is not suitable for use when it may be exposed to condensing moisture, mist or water spray.
