Vigilant Audio Visual Indicators AVI MK2 2LINE (FP0853)
$645.26

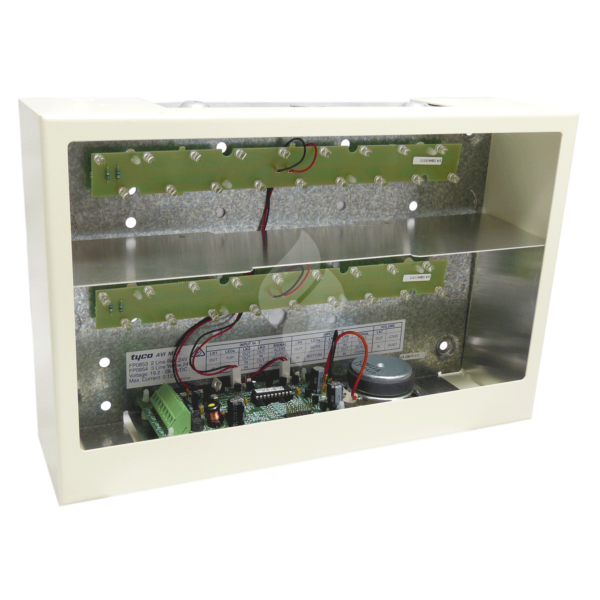

The VIGILANT AVI Mk2 is an illuminated warning sign that produces distinct audible and visual indication of an emergency.
SKU
FP0853
The VIGILANT AVI Mk2 is an illuminated warning sign that produces distinct audible and visual indication of an emergency. It is designed for use with fire alarm or gaseous fire extinguishing systems, or other applications where clear audio visual warning is required. On activation, the AVI’s internal LEDs illuminate the lettering on the 2 sign faceplate/s and the internal loudspeaker produces either ISO 8201 or AS 2220 audible warning signals. The internal speaker has a link-selectable Quiet option that reduces the tone volume by 10dB. Configuration Options Illumination of the top and bottom sign sections and selection of the tones to be used is field programmable using internal links. This way, the AVI can readily display one or two-stage warnings. Up to four lines of text may be accommodated on the faceplate, although use of two or three lines is standard. For situations with low ambient light, the sign illumination can be reduced. This also reduces current consumption. Expansion options include an LED board kit to convert a red 2-line unit to ceilingmounted, double-sided format. Several AVIs may be synchronised by connecting the ‘Sync’ terminals (an additional wire is required between units).
Audio Visual Indicator Datapage
Specification
Audio Visual Indicator Datapage
