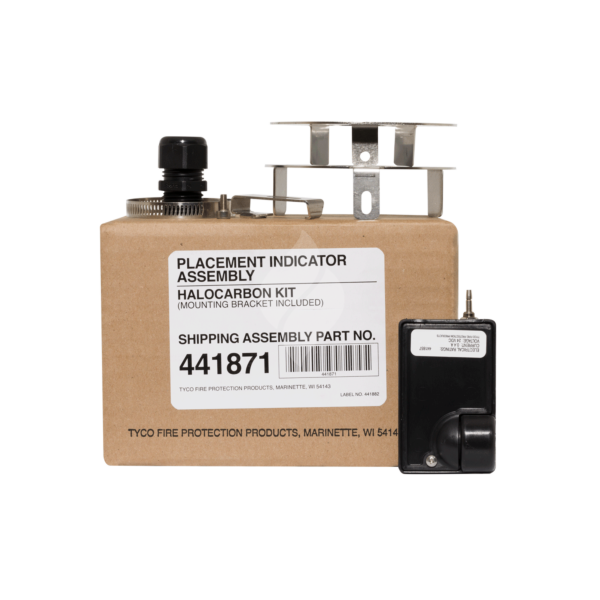

Ansul Placement Indicator Switch Sapphire & FM-200 IG-541 & HFC-227ea for Electric Actuators (441871)

FSP Can Supply Ansul Sapphire & FM-200 IG-541 & HFC-227ea Placement Indicator Switch for Electric Actuators (441871) This switch is a monitoring device deisgned to help ensure the proper placement of electric actuators on the master cylinder and selector valve.

The Placement Indicator Switch is designed to allow direct mounting to the electric actuator for monitoring by the Fire Control Panel.

24VDC Control Panel Monitoring solutions are supported, with the switch capable of handling 400mA of current. The integrated connector allows for flexiblility of EOL (End of Line) Resistors and is connected as a Normally Open (NO) Circuit. If the Actuator is not in its normal (proper) position, the Switch contacts are CLOSED

Ansul Sapphire & FM-200 Placement Indicator Switch Technical Specifications and Information

• Housing Material: Plastic
• Switch Material: Stainless Steel/Plastic/Gold Contacts
• Thread: 1/2 in. - 14 NPSM
• Voltage Rating: 24VDC
• Current Rating: 0.4 Amp
• Switch Wiring:
  1. Control Panel Input (+/-)
  2. EOL Resistor
  3. EOL Resistor
  4. Control Panel Input (+/-)
