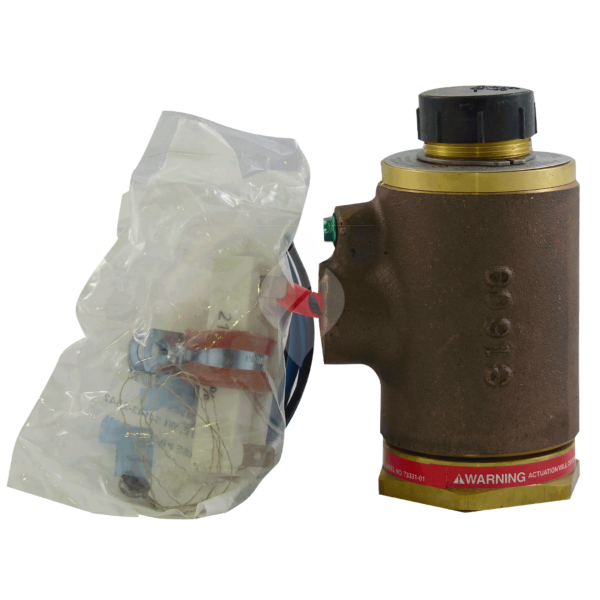

Ansul HF Electric Actuator (73327)

Electric actuation of an agent cylinder and/or selector valves is accomplished by an HF electric actuator interfaced through an Autopulse Control system. This actuator can be used in hazardous environments where the ambient temperature range is between -18 to 54 degree C.
SKU
73327 HF Actuator

Electric actuation of an agent cylinder and/or selector valves is accomplished by an HF electric actuator interfaced through an Automatic Control system.

This actuator can be used in hazardous environments where the ambient temperature range is between -18 to 54 degree C.

The HF electric actuator meets the requirements of N.E.C Class 1, Div 1, Groups B, C, D and Class II, Div 1, Groups E, F, G. 12VDC 0.57A .

The HF actuator fits on the ANSUL hi flow valve or a CV-90 valve and if manual actuation is needed use manual release lever (part #70846).

IF HF actuator is needed for a CV-98 valve then use a CV-98 booster. See data sheet



Specification

Ansul 73327 HF Electric Actuator Datapage
