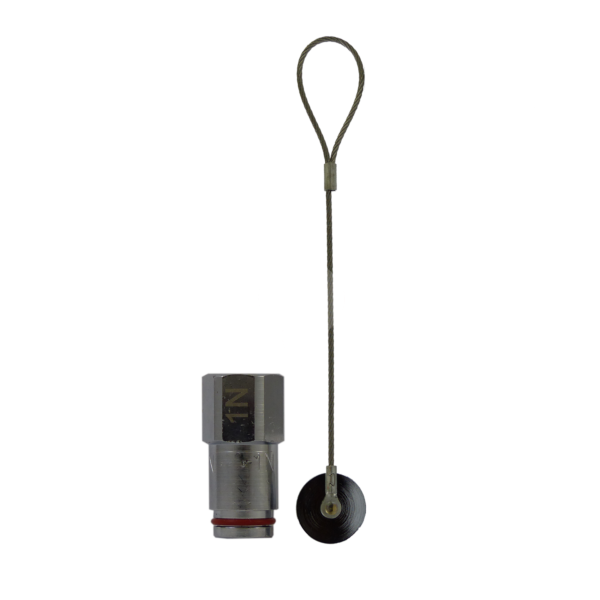

Ansul R-102 1N Nozzle & Cap (439828)

About Ansul R-102 Restaurant Kitchen Fire Suppression Systems

The Ansul R-102 kitchen fire suppression system is a pre-engineered restuarant risk reduction solution, designed to suppress dangerous fires that occur in and around commercial kitchens. With the R-102 kitchen fire Suppression system installed, directly into the ductwork and hoods of a kitchen, your clients can be assured that it will not interfere with the running of the kitchen operations and is completely out of sight until its required.

ANSUL products protect more food service kitchens from fire than any other brand.

The R-102 Fire Suppression System incorporates a flexible design with an extremely effective ANSULEX Low pH Liquid Agent.

ANSULEX quickly knocks down flames and cools hot surfaces, while generating a tough vapor securing blanket that helps prevent re-flash.

The R-102 system is designed to protect areas associated with ventilating equipment, including hoods, ducts, plenums, and filters. It also protects auxiliary grease extraction equipment and cooking equipment such as various types of fryers, griddles, range tops, broilers, char-broilers and woks.

The system is ideally suited for commercial kitchens in fast food chains, retail food courts, diners, convenience stores, catering facilities, mobile food trucks, hotels and casinos, stadiums, schools, hospitals and more.

The R-102 system is cooking equipment friendly and offered in two designs: Appliance-Specific and Overlapping.

1. The appliance-specific design aims the nozzles at the specific hazard areas of each appliance.
2. With the overlapping design, the nozzles are arranged to overlap and provide a "fire-free zone" throughout a group of appliance.

Key Features:

• a mechanical system, meaning there is no further back-up required in the event of a fire occurring
• As a pre-engineered system, there is no need to tailor the design to suit different types of hazards and equipment. For example, maximum and minimum pipe lengths, as well as varied types of nozzles can be employed to suit multiple kitchen designs
• Low pH agent
• Proven design
• Ease of recharge and post-fire cleanup
• Non-corrosive
• Reliable gas cartridge operation
• Aesthetically appealing
• UL Listed – Meets requirements of UL 300U
• LC Listed – Meets requirements of ULC/ORD-C1254.6
• LPS1223
• ABS and CE approved and listed
• ActivFire™ listed by CSIRO
• Five-year limited warranty

R-102 History

Ansul was created by Francis "Frank" G. Hood in Marinette (USA) in 1912.

In 1978, it was acquired by Wormald International, an Australian corporation.

In 1990, Wormald was in turn acquired by Tyco International.

In 2016, Tyco became a member of Johnson Controls (JCI).

Ansul now exists as a brand of the Tyco Fire Protection segment of Tyco International.
