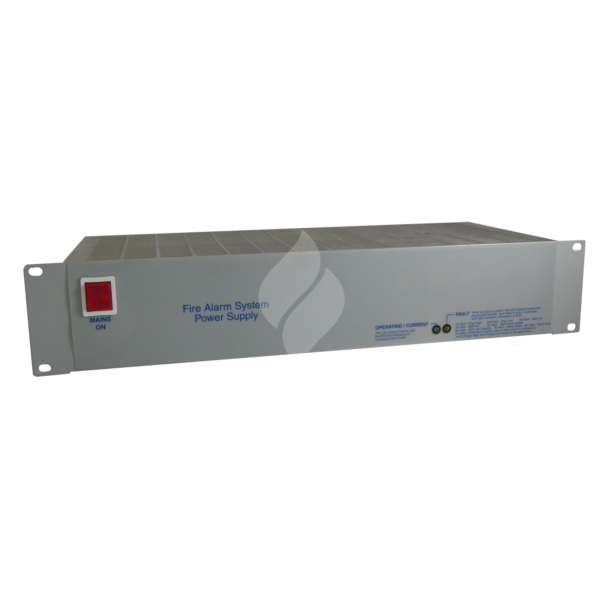

OBSELETE Vigilant 24VDC 6 Amp Power Supply 19 Inch Rack Mount for MX4428 (ME0340)
$1,952.49
PSU2406 and PSU2412 power supplies feature combined power supply and constant voltage, temperature compensated, battery charging facilities to suit MX4428/F4000 fire indicator
panels. The range of models includes 5 Amp in 19†rack mounting (2U) or gear-plate mounting (brick) and 10Amp in 19†rack mounting (2U). Informative LEDs provide diagnostic indications for ease of servicing. A green
LED on the front panel indicates operation and its flash cadence indicates current loading. A yellow LED provides fault indication with the flash cadence identifying the fault type. The power
supplies require a mains power input of 230V 50Hz.The power supplies are respectively rated for 5A and 10A continuous, with 6A and 12A peak loads for a short duration respectively.
SKU
ME0340
PSU2406 and PSU2412 power supplies feature combined power supply and constant voltage, temperature compensated, battery charging facilities to suit MX4428/F4000 fire indicator
panels. The range of models includes 5 Amp in 19†rack mounting (2U) or gear-plate mounting (brick) and 10Amp in 19†rack mounting (2U). Informative LEDs provide diagnostic indications for ease of servicing. A green
LED on the front panel indicates operation and its flash cadence indicates current loading. A yellow LED provides fault indication with the flash cadence identifying the fault type. The power
supplies require a mains power input of 230V 50Hz.The power supplies are respectively rated for 5A and 10A continuous, with 6A and 12A peak loads for a short duration respectively.Part Number ME0340
PSU12 14 Power Supplies Datapage
Specification
PSU12 14 Power Supplies Datapage
